PowerShell: Finding neighbors with Get-NetNeighbor

Do you know your neighbors? I mean the neighbors in the real word. I hope so. But what about the virtual neighbors? The PowerShell module NetTCPIP provides a command called Get-NetNeighbor. In this article i use this command to play with neighbor discovery to find all my cached neighbors sharing the same link.

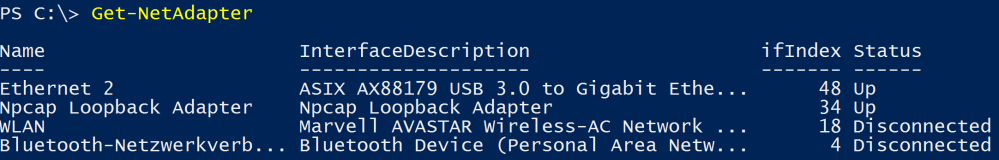

Get-NetAdapter

First check out the Interface ID (ifIndex) or name of your network adapter.

Get-NetAdapter


Get-NetNeighbor in Action

IPv4

Get-NetNeighbor -InterfaceAlias "Ethernet 2" -AddressFamily IPv4

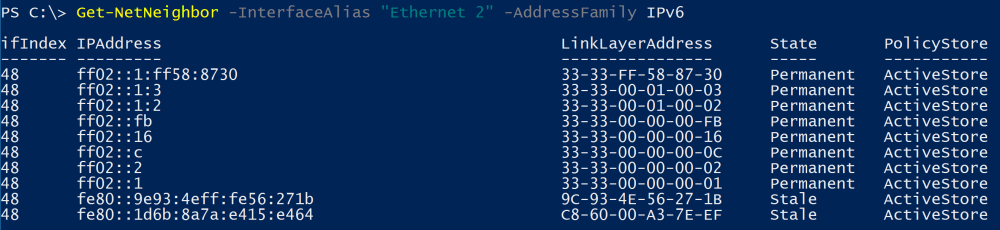

IPv6

Get-NetNeighbor -InterfaceAlias "Ethernet 2" -AddressFamily IPv6

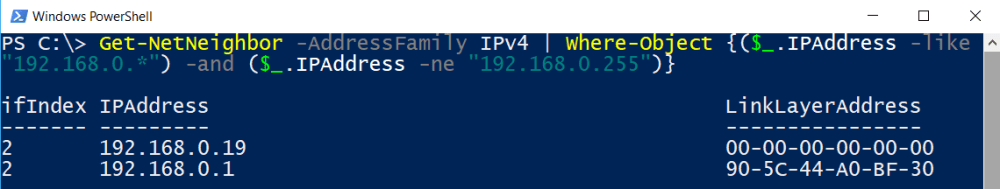

Show all IPv4 neighbors except broadcast addresses and multicast addresses

Get-NetNeighbor -AddressFamily IPv4 | Where-Object {($_.IPAddress -like "192.168.0.*") -and ($_.IPAddress -ne "192.168.0.255")}


Show all IPv6 neighbors except multicast addresses

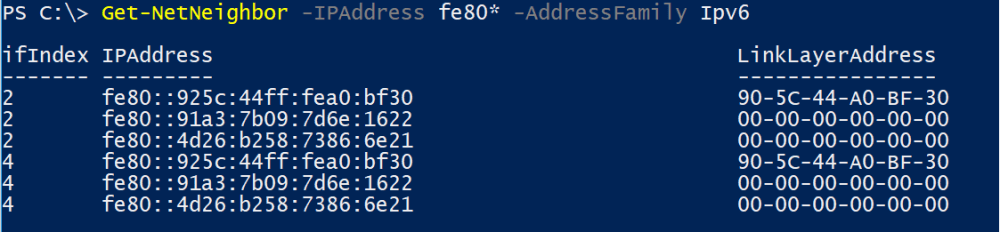

For communication on the same link Link-Local Adresses are used. To show all IPv6 neighbors with Link-Local Addresses run

Get-NetNeighbor -IPAddress fe80* -AddressFamily Ipv6


Have fun discovering your neighbors! 😉 Also see my article: The modern version of ping: Test-Connection.
